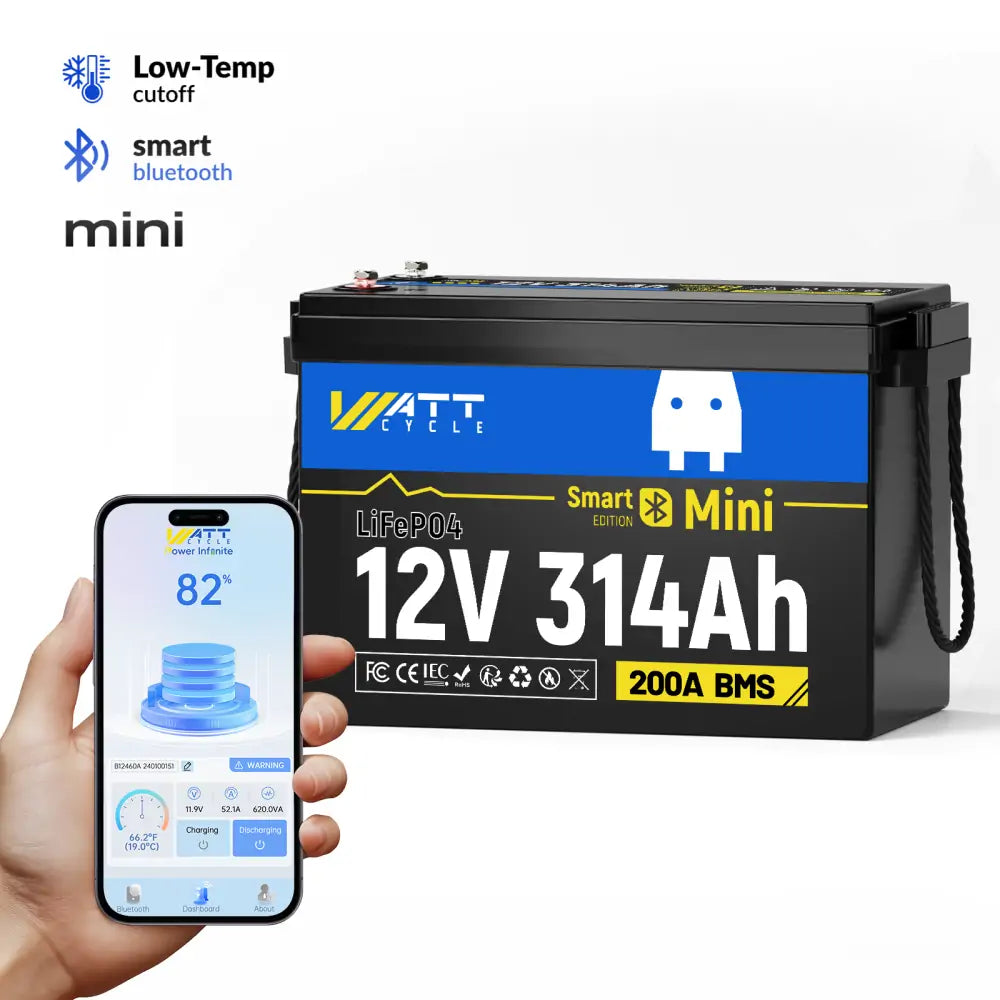

Wattcycle 12V 314Ah MINI Bluetooth LiFePO4 Battery | 200A BMS | 4019Wh

WattCycle_12V_314Ah_Bluetooth_LIFePO4_Battery_2PACK

WattCycle_12V_314Ah_Bluetooth_LIFePO4_Battery_3PACK

Wattcycle 12V 314Ah MINI Bluetooth LiFePO4 Battery | 200A BMS | 4019Wh

₱32,326.00

200A BMS ：protects your appliances from unstable grid surges

Best Value: Only ₱9 per Wh on average

Built-in aluminum fins:30% faster cooling, safety in 35°C+ summer heat.

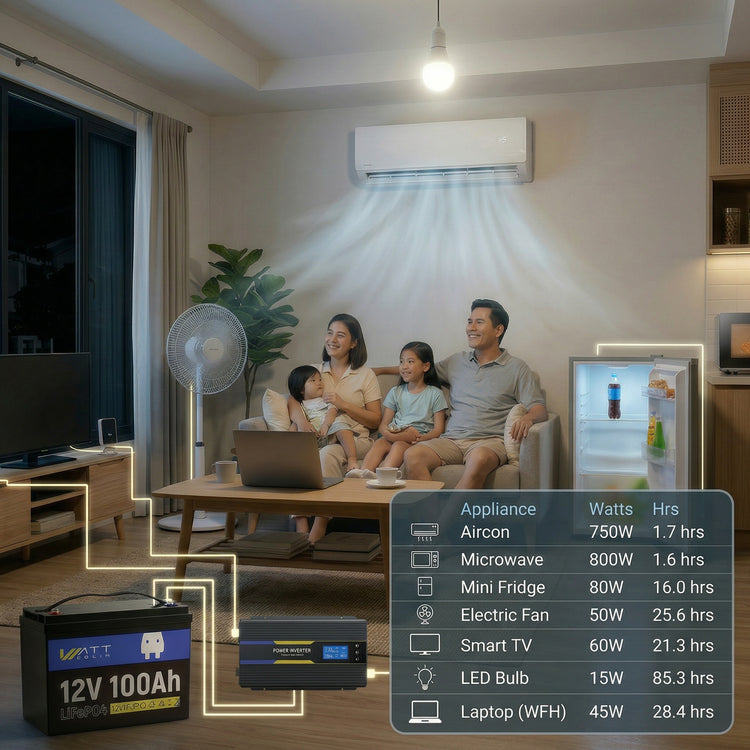

Electrical equipment

Power-Duration

🌬️Air Conditioner

735W - 5.5Hour

📺TV

80W-2Day

💡Light

15W-11Day

𖣘Electric Fan

50W-3.3Day

💻 Laptop

60W-2.79Day

Select model

1 PACK

₱32,326.00

2 PACK

₱64,652.00

3 PACK

₱96,978.00

-50%

4 PACK

₱129,304.00

-81%

juan /dilasag

Stop Buying Fake Capacity! Real 323Ah Torture Test: The Truth Behind WattCycle

333K Subscribers

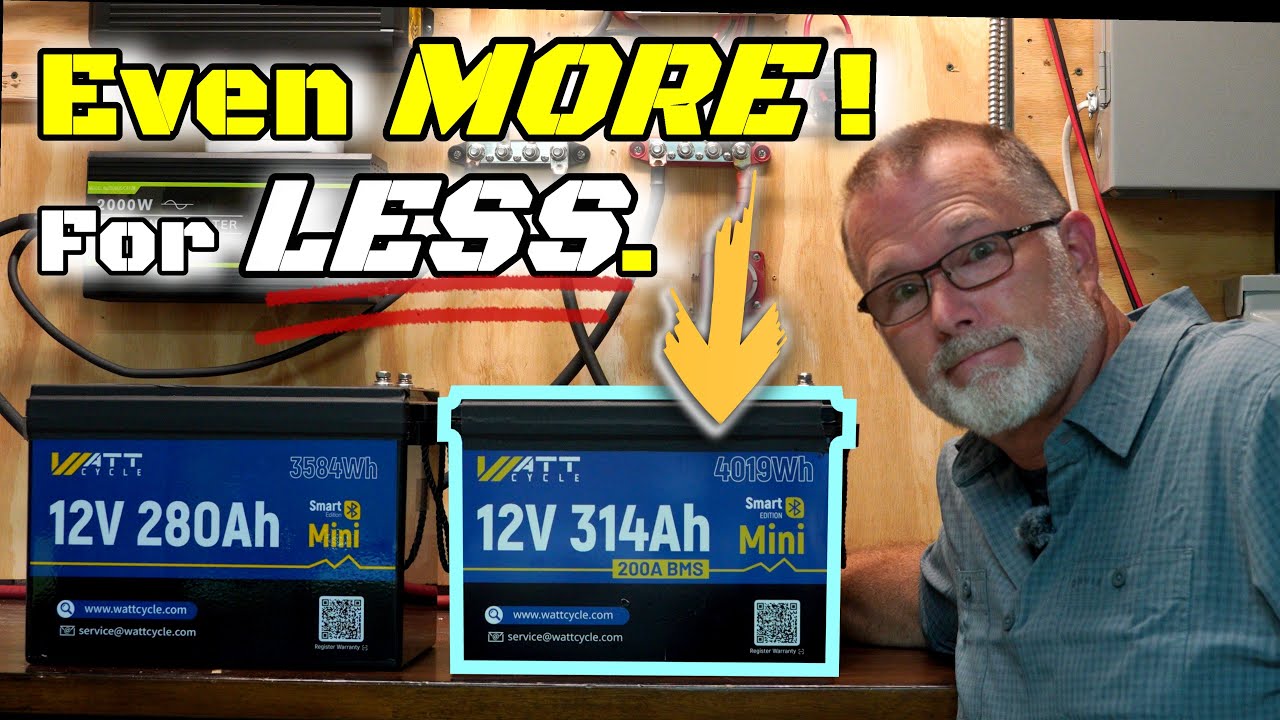

ReeWray Outdoors

Real 200A Continuous: Tested for 10 Minutes of Heat Stability.

10.5K Subscribers

SolarMinerPH

Want to see what's inside a WattCycle battery?

68K subscribers

juan /dilasag

Stop Buying Fake Capacity! Real 323Ah Torture Test: The Truth Behind WattCycle

333K Subscribers

ReeWray Outdoors

Real 200A Continuous: Tested for 10 Minutes of Heat Stability.

10.5K Subscribers

SolarMinerPH

Want to see what's inside a WattCycle battery?

68K subscribers

1 / 3

Ingkong's Creation

Beat the PH Heat: Run your 1.0HP Aircon All Night Long

9070 Subscribers

Tyhmät Työmiehet

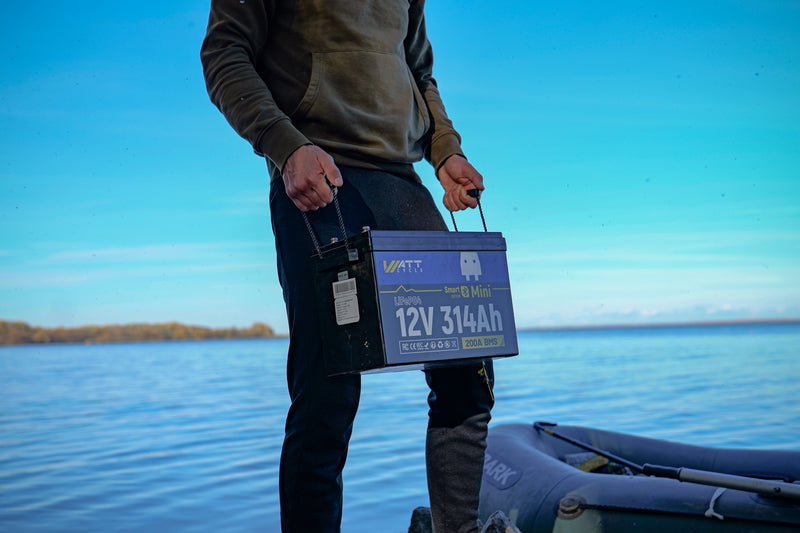

Perfect for Local Fishermen: Quiet, Clean, and 10 Hours of Silent Running.

28.2K Subscribers

Nat Moran

Upgrade Your RV Life: Unleash Total Freedom with WattCycle 314Ah

22.8K Subscribers

Ingkong's Creation

Beat the PH Heat: Run your 1.0HP Aircon All Night Long

9070 Subscribers

Tyhmät Työmiehet

Perfect for Local Fishermen: Quiet, Clean, and 10 Hours of Silent Running.

28.2K Subscribers

Nat Moran

Upgrade Your RV Life: Unleash Total Freedom with WattCycle 314Ah

22.8K Subscribers

1 / 3

Minute Man Solar

Expert Guide: Building the Ultimate Budget-Friendly Off-Grid System

88.6K Subscribers

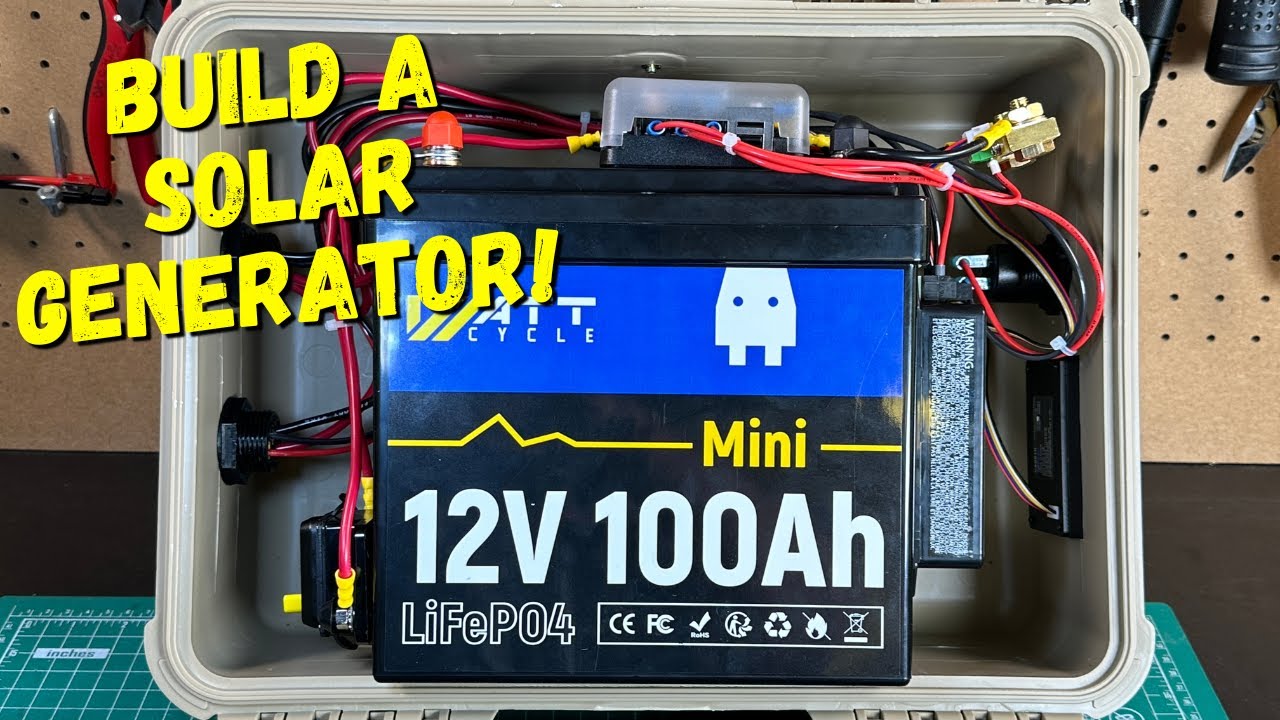

Ham Radio Tube

Build your own 100Ah Portable Power Station with WattCycle Mini

72.8K Subscribers

Homesteading Off The Grid

You don't need to be an electrician—just Connect, Invert, and Use.

368K Subscribers

Minute Man Solar

Expert Guide: Building the Ultimate Budget-Friendly Off-Grid System

88.6K Subscribers

Ham Radio Tube

Build your own 100Ah Portable Power Station with WattCycle Mini

72.8K Subscribers

Homesteading Off The Grid

You don't need to be an electrician—just Connect, Invert, and Use.

368K Subscribers

1 / 3

Documents & Resources

From Spec Basics to Advanced Series-Parallel Wiring—Everything You Need for a Seamless 12V --48V Setup.

Download Full Manual

All WattCycle LiFePO4 batteries come with a comprehensive 5-year warranty, extendable to 7 years with product registration. We stand behind our quality.

Our batteries come with a 30-day risk-free trial. If your battery has a quality issue, you can return it and receive a full refund, no questions asked.

Our batteries meet international safety standards including IEC / ROHS / CE / FCC / UN38.3 / Class 9 certifications. Safe for shipping and use worldwide.

Comparison with 12V100Ah

3 times the power in just 2 times the size
Get 3.1 times the power without complicated wiring.
200A output handles Aircons and Rice Cookers with ease.

Designed specifically for the Philippine climate

Aluminum Cooling Fins: Runs 30% cooler, keeping your battery safe even in the summer
Copper wire provides more stable current transmission.
Built-in metal bracket for impact protection

2P-24VSet（TV+Aircon+Fridge）

Cool air, cold drinks, and your favorite shows—all night long. With 8kWh of WattCycle power, you don't have to choose between comfort and entertainment. Experience 16 hours of seamless luxury, even when the grid goes dark

3P-36V Set（Commercial Freezer + Aircon + POS + WiFi）

While your competitors are closing shutters and losing money, your store stays bright and icy cold. With 12kWh of WattCycle power, you’re not just surviving the brownout—you’re winning all the customers in the neighborhood. "Turning Brownouts into Your Best Business Hours."

4P-48V Set （Typhoon Season Resilience）

From the strongest typhoons to the longest blackouts, the 4P Set is your ultimate energy fortress. With 16.1kWh of massive storage, you can run your 2.0HP Aircon, full-sized refrigerator, and water pumps for up to 60 hours of essential security.

LABAN SA MAHAL NA KURYENTE！

Use WattCycle as your Smart Power Buffer. Charge your battery when rates are lower or via Solar. Discharge during the hottest hours to power your 1HP Aircon or Electric Fan.

Standard Electricity Bill

100%

Optimized Bill with WattCycle

70%

Upgrade to a More Comfortable Life

No more noisy engines and messy fuel. WattCycle gives you silent, clean, and solar-ready power.

Ginhawa

30%

Ginhawa

100%

Comparison with Lead-Acid Batteries

Stop wasting money on heavy Lead-Acid batteries that die in 1-2 years. WattCycle Lithium gives you 2X more usable power

Weight / Lifespan

100%

Weight / Lifespan

35%

Dimensions (L x W x H)

260 x 168 x 209 mm

Weight

27 kg (approx. 59.52lbs)

Waterproof Rating

IP65 Dust & Waterproof

Warranty

Sign Warranty to extend for 7 years

Case Material

ABS+PC/UL94 V-0

Terminal

bolts

BMS

12.8V/200A Smart BMS Protection

Max. Continuous Output Power

4010Wh

Standard/Max. Continuous Charging

62.8A/200A

Max. Continuous Discharge Current

200A

Over-current Discharge Protection

210A±10A

Over-current Charge Protection

210A±10A

Short Circuit Current Protection

Support

Release Condition

Cut Load

Charging High Temperature Protection

140°F ~ 158°F / 60°C ~ 70°C

Discharging High Temperature Protection

149°F ~ 167°F / 65°C ~ 75°C

Safe Charging Voltage

14.6V±0.2V

Shipping Voltage

12.8V~13.5V

Shipping Capacity

50%

Cycle Life

6000@80%DOD

Self Discharge Rate

<3%/Month

Series & Parallel Connections

Max. 4 Parallel 4 Series

Recommended charger

60Ah-0.2C（Fully charged in 5 hours）

How do I use the Wattcycle battery?

The WattCycle 12V 314Ah Mini is specifically designed for maximum portability. To power your home appliances, you simply need to connect it to a Power Inverter (which converts the battery's DC power to AC household electricity). Pro-Tip for Stability: For a single 12V battery setup, we recommend powering one major appliance at a time (such as an Electric Fan, TV, or Laptop). To avoid overloading the system and to ensure the longest battery life, please refrain from connecting too many high-wattage devices simultaneously.

How do I charge my WattCycle Battery?

We offer three high-efficiency charging methods to fit your lifestyle: （1）Solar Power (Eco-Friendly): Solar panel + MPPT controller + WattCycle Battery （2）AC Wall Charging (Fastest): Use our 14.6V 20A LiFePO4 Charger. It takes only 5 hours to fully charge from 0% to 100% via a standard wall outlet. （3）Power Generator / Alternator (On-the-Go): You can charge via a Diesel/Gas Generator or your vehicle's alternator. For the best performance and safety, we highly recommend using a 60A DC-DC Charger to regulate the current.

What is the workflow of a Battery Management System (BMS)?

WattCycle Smart BMS Protection: ⚡ Over-Charge (>15V): Auto-stop charging to prevent swelling 🛑 Over-Discharge (<8.8V): Auto-cut power; Reconnects at 10.8V 🌡️ Over-Heat: Stop Charge @ 70°C / Discharge @ 75°C ❄️ Low-Temp: No charging below 0°C; Discharge ok to -20°C 🌡️ Safe Range: -20°C to 65°C.

Do I need to buy a special charger for LiFePO4 batteries?

We recommend purchasing a 0.2C charger, which fully charges the battery in 5 hours. The formula is as follows: Battery capacity / 5 hours = acceptable charging cable. We do not recommend charging cables with a power output less than 5 hours, as this will affect battery life.

The battery is at 0V, what should I do?

This is likely due to the overcurrent or short circuit protection being triggered. Please disconnect the battery cables from the load and test the battery voltage. - If the voltage is above 10.8V, reconnect the battery cables. - If the voltage is below 10.8V, please contact our technical team at service@wattcycle.com.

What's the difference between lithium batteries and portable energy storage stations?

THE PROBLEM WITH ALL-IN-ONES: If the built-in inverter or screen breaks, the WHOLE UNIT IS TRASH. 🗑️ High repair costs and zero flexibility. You pay 2x the price for 1/2 the actual battery capacity.

What is the warranty process?

We offer free warranty service for up to 5 years. Note: The warranty for each battery is subject to our warranty terms.

Is it fire-proof?

Built Like a Fortress: WattCycle features a non-flammable ABS shell and a Smart BMS 'Brain' for 100% worry-free safety in your home
